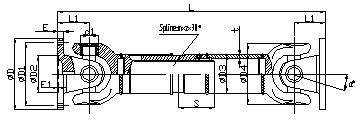

LQA Type Cardan shaft

LQA Type

LQA-WH Type





Model

Nominal Torque Tn N.m

Fatigue Touque Tf N.m

D

D4

D1

D2

D3

L1

E

E1

n-d

Lmin
S

α≤(·)

LQA60

220

110

60

60

45

20

38

32

6

2.5

4-Φ7

280
20

25

LQA65

220

110

65

60

52

25

38

32

6

2.5

4-Φ7

280
20

25

LQA75

450

225

75

75

62

30

50

55

8

2.5

4-Φ7

350
30

25

LQA80

450

225

80

75

65

35

50

55

8

2.5

4-Φ7
350
30

25

LQA90

1100

550

90

90

75.5
42

63.5

60

8

2.5

6-Φ7
400
30

25

LQA100

1300

650

100

95

84

50

50

65

9
3

6-Φ9

450
40

25

LQA110

1650

825

110

110

90

50

63.5

64

9
3

6-Φ9

450
40

25

LQA120

2800

1400

120

120

101.5

70

76

70

10
4
6-Φ11
510
40

25

LQA140

4400

2200

140

140

120

70

89

77.5

10

4.0
6-Φ11
530
50

25

LQA150

6500

3250

150

150

130

80

89

85

12
5
6-Φ13
550
50

25

LQA160

10500

5250

160

160

135

80

92

90

12
5
6-Φ14
600
50

25

LQA180

14000

7000

180

175

155

90

102

100

12

5.0

6-Φ14
650
50

25

LQA200

18000

9000

200

185

170

120

108

120

15

5.0

8-Φ16.5

750
80

25

LQA225

22000

11000

225

200

196

135

120

130

15

5.0

8-Φ16.5

900
80

25

687.15-65 Series Cardan shaft

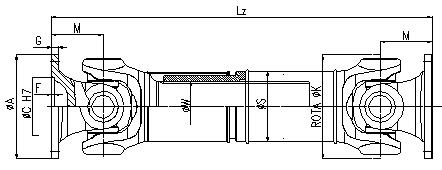

0.02 with length compensation, tubular design

6-hole flange 8-hole flange 10-hole flange

0.03 without length compensation, tubular design

9.01 with length compensation, short design
9.03 with length compensation, short design

9.04 without length compensation, double flange shaft design

687.15-65 Series Cardan shaft Data sheets

Cardan shaft size 687.15 687.20 687.25 687.30 687.35 687.40 687.45 687.55 687.65
TCS KN.m 2.4 3.5 5 6.5 10 14 17 25 35
Tk KN.m 1.8 2.7 3.8 5.0 7.7 10.5 13 19 27
Tdw KN.m 0.7 1.0 1.6 1.9 2.9 4.4 5.1 7.3 11
Deflection β ≤ ° 25 25 25 25 25 25 44 25 44 25 35 25 25 35 25 25 25
Flange A mm 100 120 120 120 150 150 180 150 150 180 180 180 225 225 180 180 225 180 225
Rotation K mm 90 98 113 127 127 144 144 160 160 160 160 174 174 174 178 178 178 204 204
B 84 101.5 101.5 101.5 130 130 155.5 130 130 155.5 155.5 155.5 155.5 196 155.5 155.5 196 155.5 196
C 57 75 75 75 90 90 110 90 90 110 110 110 110 140 110 110 140 110 140
F 2.5 2.5 2.5 2.5 3 3 3 3 3 3 3 3 3 5 3 3 5 3 5
G 7 8 8 8 10 10 12 10 10 12 12 12 12 15 14 14 15 15 15
H 8.25 10.25 10.25 10.25 12.25 12.1 14.1 12.1 12.1 14.1 14.1 14.1 14.1 16.1 16.1 16.1 16.1 16.1 16.1
Hole 6 8 8 8 8 8 8 8 8 8 8 8 8 8 10 10 8 10 8
M 48 54 70 72 78 95 90 102 102 102 102 95 95 90 115 115 95 110 110
S 63,5x2,4 76,2x2,4 89x2,4 90x3 90x3 100x3 100x3 120x3 100x4,5 120x3 100x4,5 120x4 110x5 120x4 120x6 120x6 120x6 142x6 142x6
W7 36x1,5 40x1,5 45x1,5 48x1,5 48x1,5 54x1,5 54x1,5 62x1,75 62x1,75 62x1,75 62x1,75 68x1.75 68x1.75 68x1.75 78x2 78x2 78x2 88x2.5 88x2.5

Length dimensions and Weights

Design cardan shaft size 687.15 687.20 687.25 687.30 687.35 687.40 687.45 687.55 687.65
0.02 Lz min 346 379 458 492 504 582 572 586 693 586 693 595 703 585 662 681 622 686 686
La 60 70 100 110 110 110 110 110 180 110 180 110 180 110 110 110 110 110 110
G (KG) 5.7 8.4 12 13 14.2 24 25.6 28.7 30.3 29.4 309 35.7 38.4 37.7 44 49.2 47 61 65
0.03 Lf min 221 239 282 310 322 379 369 423 449 423 449 425 425 415 475 495 435 491 491
G (KG) 4.1 5 8.6 8.6 10 18 20 23 21 24 22 28 28 30 33 45 36 47 52
9.01 Lz min 296 322 361 379 391 510 500 505 525 505 525 517 538 507 587 606 547 586 586
La min 38 41 36 36 36 70 70 70 60 70 60 70 60 70 70 70 70 55 55
Lz min 348 381 425 453 465 550 540 545 645 545 645 557 658 547 617 636 577 641 641
La min 90 100 100 110 110 110 110 110 180 110 180 110 180 110 100 100 100 110 110
9.03 Lz min 245 274 313 331 343 424 414 446 - 446 - 447 - 437 513 - 473 524 524
La min 25 27 28 29 29 50 50 50 - 50 - 50 - 50 50 - 50 50 50
Lz min 280 317 355 397 409 484 474 506 - 506 - 507 - 497 563 - 523 584 584
La min 60 70 70 95 95 110 110 110 - 110 - 110 - 110 100 - 100 110 110
9.04 Lf min 192 216 240 288 312 380 360 408 408 408 408 380 380 360 460 460 380 440 440

587.50-60 Series Cardan shaft

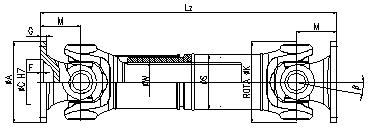

0.01 with length compensation, tubular design
0.02 with large length compensation, tubular design

8-hole flange 10-hole flange

0.03 without length compensation, tubular design

9.01 with length compensation, short design
9.03 with length compensation, short design

9.04 without length compensation, double flange shaft design

587.50-60 Cardan shaft Data sheets

cardan shaft size 587.50 cardan shaft 587.55 cardan shaft 587.60 cardan shaft
Tcs KN.m 43 52 57
Tk KN.m 33 40 44
Tdw KN.m 13 18 23
Lc- 1.76 7.6 24.8
Deflection angle β mm 24 24 24 20 20 20 20
Flange A mm 225 250 250 250 285 285 285
Rotation K mm 215 215 215 250 250 265 265
B mm 196 218 218 218 245 245 245
Bs mm - - 214 214 - 240 -
C mm 140 140 140 140 140 175 175
F mm 4.4 5.4 5.4 5.5 6.0 6.0 6.0
G mm 15 18 18 18 20 20 20
H mm 16.1 18.1 18.1 18.1 20.1 20.1 20.1
Hs mm - - 25 25 - 28 -
l - 8 8 8 8 8 8 8
ls - - - 4 4 - 4 -
M mm 108 108 108 125 125 135 135
S mm 144*7 144*7 144*7 168*8 168*8 168*10 168*10
W - 90*2.5 90*2.5 90*2.5 115*2.5 115*2.5 115*2.5 115*2.5

Cardan shaft length dimensions, weights

Design cardan shaft size 587.50 587.55 587.60
0.01 Lz min mm - - - 840 840 870
La mm - - - 100 100 100
G kg - - - 118 122 132
0.02 Lz min mm 800 800 800 960 960 990
La mm 110 110 110 200 200 200
G kg 86 89 89 155 159 170
0.03 Lf mm 540 540 540 610 610 640
G kg 72 73 73 88 92 103
9.01 Lz min mm - - - 815 815 845
La mm - - - 100 100 100
G kg - - - 116 120 130
9.02 Lz mm - - - 780 780 810
La mm - - - 70 70 70
G kg - - - 111 115 125
9.03 Lz mm 550 550 550 720 720 750
La mm 60 60 60 65 65 65
G kg 61 62 62 109 113 126
9.04 Lf mm 432 432 432 500 500 540
G kg 56 59 59 81 90 102
